Microinverter
IP67 Protection Degree
Wi-Fi Communication
Rapid Shutdown Function
2 MPPT Trackers, Module Level Monitoring
Complete NS Protection With Self-Check Function
Easy Installation, Suitable For Quick-Plug Balcony PV System
External Relay Advantage With Low Temperature, Long Life, Easier Maintenance

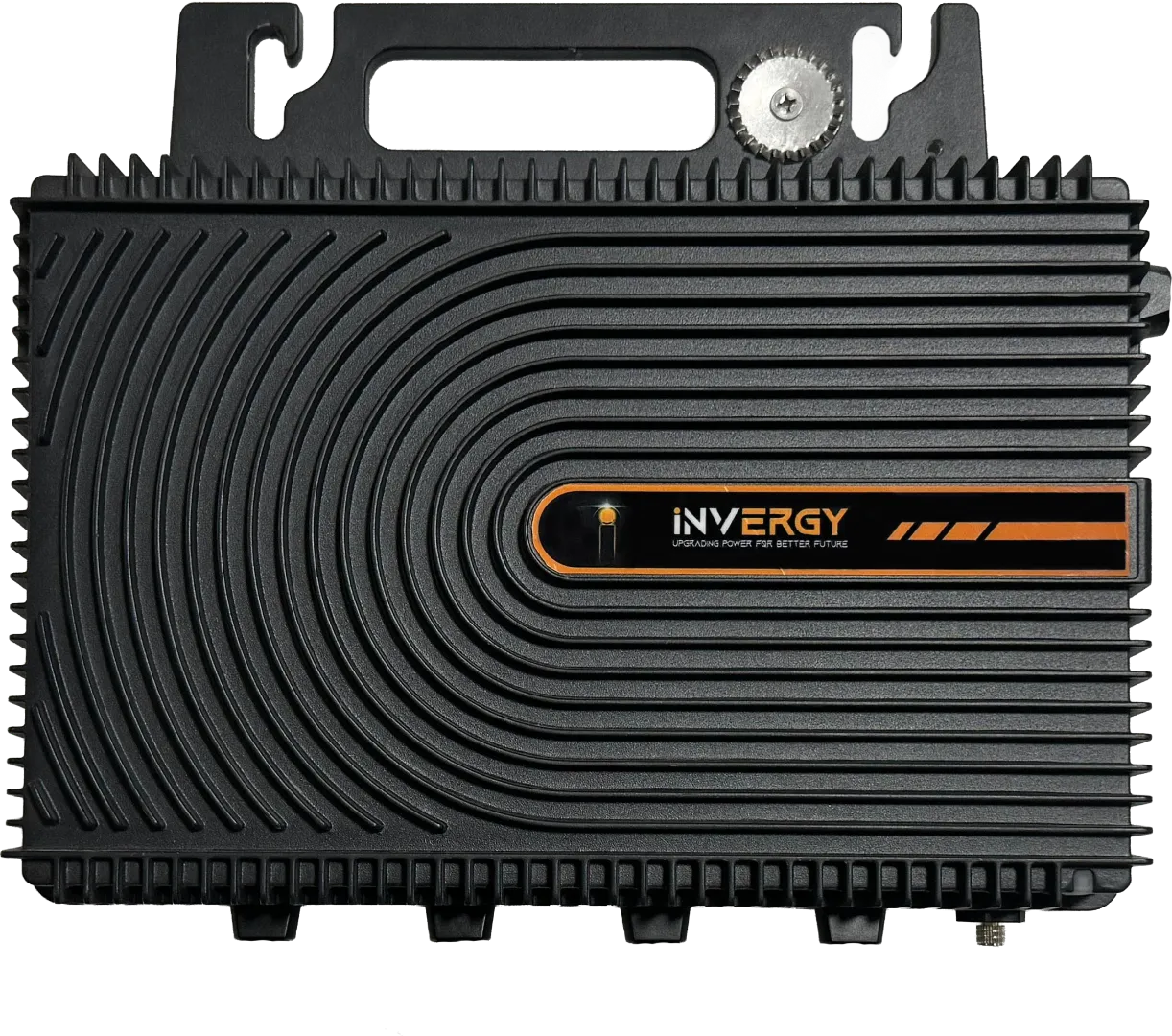

Microinverter
High-efficiency microinverter delivering reliable module-level optimisation, dual MPPT performance, smart monitoring, and enhanced solar energy output.
Module-Level Control
Optimised Energy Performance
99% Efficiency
High Conversion Output
Built for Safety
Reliable for Indian Sites
Variants
INV-M100M2-700
Smart Monitoring
Grid Compliance & Flexibility
Residential Series
IP67 Protection Degree
Wi-Fi Communication
Rapid Shutdown Function
2 MPPT Trackers, Module Level Monitoring
Complete NS Protection With Self-Check Function
Easy Installation, Suitable For Quick-Plug Balcony PV System
External Relay Advantage With Low Temperature, Long Life, Easier Maintenance
IP67 Protection Degree
Wi-Fi Communication
Rapid Shutdown Function
2 MPPT Trackers, Module Level Monitoring
Complete NS Protection With Self-Check Function
Easy Installation, Suitable For Quick-Plug Balcony PV System
External Relay Advantage With Low Temperature, Long Life, Easier Maintenance
Key Features
- Module-level power optimization with 2 independent MPPT trackers for panel-by-panel energy harvest
- Delivers 1000W rated AC output with max apparent power of 1000VA
- Start-up voltage of 20V and MPPT voltage range of 25–55V
- Max PV input current of 13+13A, short-circuit current rating of 19.5+19.5A
- Complete protection suite: DC reverse polarity, AC overcurrent/overvoltage, short-circuit, thermal, insulation impedance, and anti-islanding protection
- Rated output voltage of 220/230V with grid frequency support of 50/60Hz
- Operating temperature range of -40°C to +65°C (derating above +45°C)
- Power factor adjustable from 0.9 leading to 0.9 lagging
- Total current harmonic distortion below 3%
- Rated for 2000m altitude with noise level ≤25dB
- Supports PV input range of 210–700W per module, across 2 pieces
- Achieves 96.5% max efficiency, 96.0% Euro efficiency, and 99%+ MPPT efficiency
- WiFi communication interface for remote monitoring
- Operating temperature range of -40°C to +65°C (derating above +45°C)
- Operating temperature range of -40°C to +65°C (derating above +45°C)
- Compact cabinet size of 660x199x215mm, weighing just 3kg
- Compliant with IEC 61727, IEC 62116, EN 50549, VDE-AR-N 4105, and other international grid standards
- Backed by a 15-year product warranty
- Ideal for balcony PV systems, quick-plug installations, and space-constrained urban rooftops.
Residential Rooftops
- Ideal for small to medium-sized homes
Shops & Offices
- Reduce electricity costs efficiently
Farmhouses & Villas
- Reliable and clean solar power
Net-Metering Systems
- DISCOM compliant integration
CERTIFIED SAFETY
- IEC 62109-1 / 2 compliant
- International safety standards
GRID READY
- IEC 61727 certified
- Reliable grid connectivity
BIS CERTIFIED
- India compliance approved
- Built for local standards
CE & EMC COMPLIANT
- Electromagnetic compatibility
- Reliable and stable operation
Technical Highlights
(Refer to datasheet for detailed specifications.)
