LiFePO4 Battery (TB Series)
High Energy Density
Short Circuit Protection
Bluetooth Connectivity
Long Life Cycle
LiFePO4 Battery (TB Series)
1500V DC Input
Supports higher solar generation
3125 kVA Power Output
Built for utility-scale performance
99% Max Efficiency
Optimized energy conversion
Grid Ready Design
Reliable grid compatibility
Smart Power Management
Enhanced operational control
Industrial Grade Build
Designed for long-term reliability
Variants
INV LFP 12007-TB INV LFP 12012-TB INV LFP 12018-TB INV LFP 12200-TB INV LFP 24100-TB INV LFP 24200-TB INV LFP 12080-TB INV LFP 12100-TB INV LFP 12150-TB
Residential Series

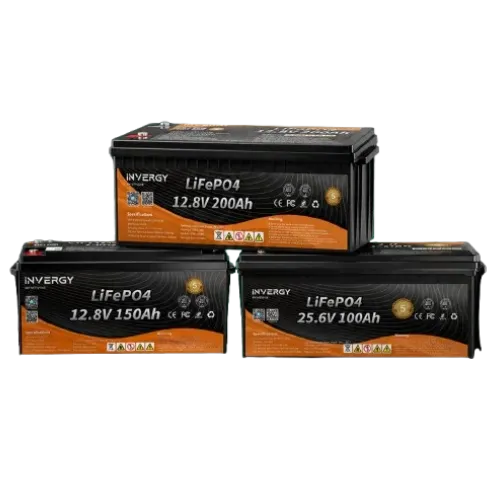

- Modular lithium iron phosphate (LiFePO4) battery series across 9 models
- Designed as a direct upgrade replacement for lead-acid batteries in solar systems.
- 12.8V variants: 7Ah, 12Ah, 18Ah, 80Ah, 100Ah, 150Ah, 200Ah capacity options
- 25.6V variants: 100Ah and 200Ah capacity options
- Module charging voltage of 14.6V (12.8V series) / 29.2V (25.6V series)
- Max charge current from 3.5A up to 100A, depending on capacity
- Rated output energy from 89.6Wh up to 5120Wh (largest model)
- Operating temperature range from -SOC to 65°C, storage optimal at 25°C
- Rated for up to 6000 charge cycles — outlasting standard lead-acid batteries
- IP54 protection class with robust short-circuit protection (disconnects below 100mΩ load)
- Overcharge protection at 3.8V per cell with continuous 8-hour tolerance at rated current
- Over-discharge protection with automatic reconnection guidance after 30Ω load test
- High energy density design in a compact form factor (as light as 1.2kg for the smallest model)
- Bluetooth connectivity for real-time battery monitoring
- Series connection support for up to 4 batteries for extended voltage/capacity
- Compact dimensions ranging from 149x164x110mm to 495x215x266mm, depending on model
- Suited as a lightweight, long-life replacement for lead-acid batteries in residential solar systems.
Residential Rooftops
- Ideal for small to medium-sized homes
Shops & Offices
- Reduce electricity costs efficiently
Farmhouses & Villas
- Reliable and clean solar power
Net-Metering Systems
- DISCOM compliant integration
CERTIFIED SAFETY
- IEC 62109-1 / 2 compliant
- International safety standards
GRID READY
- IEC 61727 certified
- Reliable grid connectivity
BIS CERTIFIED
- India compliance approved
- Built for local standards
CE & EMC COMPLIANT
- Electromagnetic compatibility
- Reliable and stable operation
Technical Highlights
(Refer to datasheet for detailed specifications.)
